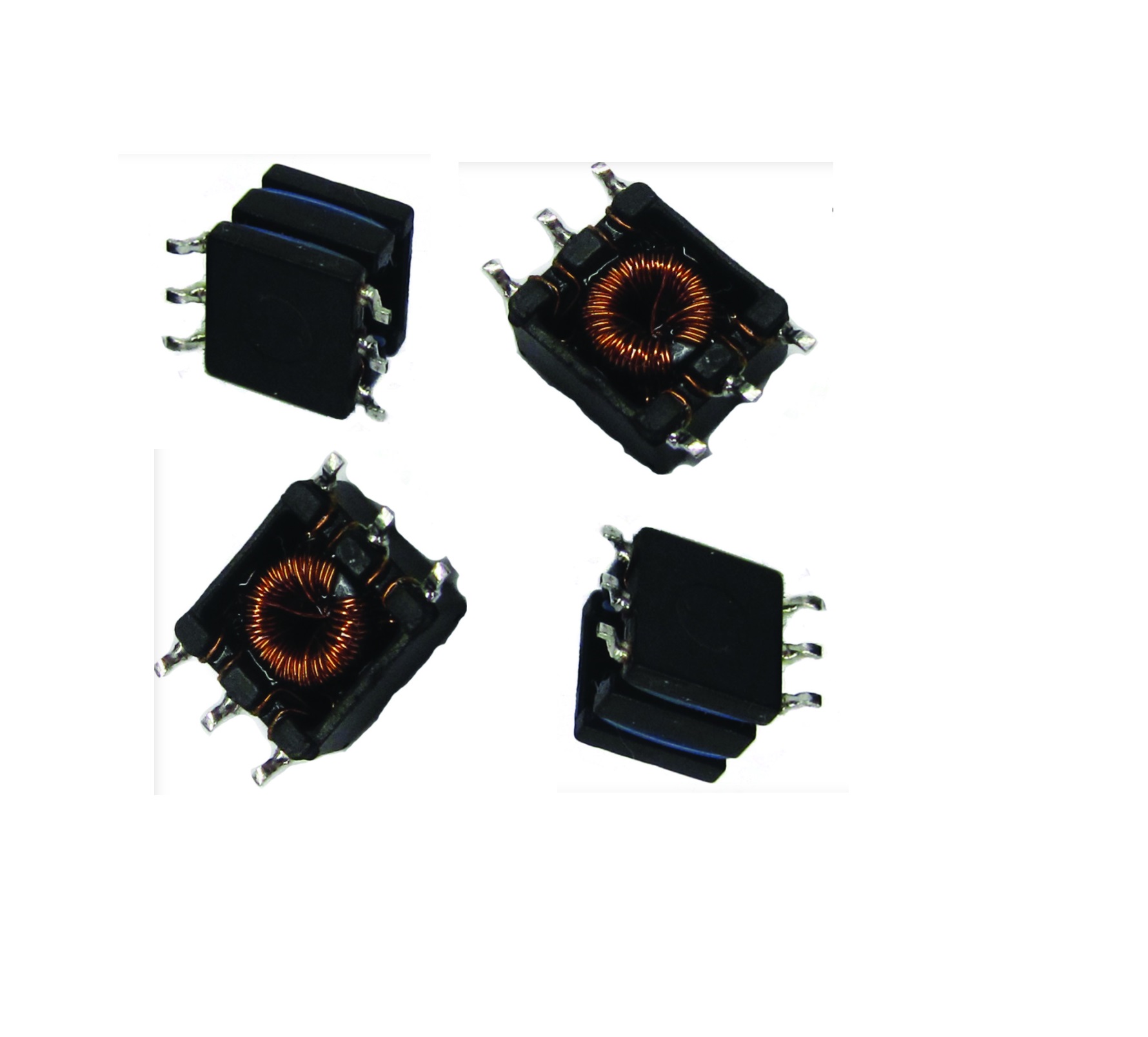

Return Current location：Home → Product → TRANSFORMER → TI SN6501&6505B Driver Transfo
| Picture | Series | Primary *Inductance(μH) Min | Isolated Voltage (Drive : Gate)(Vrms/ 1Min.) | DCRPrimary(Ω Max.) | DCR Secondary(Ω Max.) | Turns Ratio | E-T * (V-μs) | Application | Dimensions(mm) | Date sheet | X-Ref |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KGT 805-1 | 1000 | 1500 | 0.46 | 0.48 | 1:1.1 | 7.0 | 3.3 V → 3.3 V | 6.7*10*4.2 | Details > | |
 |
KGT 805-2 | 475 | 2500 | 0.31 | 0.33 | 1:1.1 | 11 | 5 V → 5 V | 6.7*10*4.2 | Details > | |
 |
KGT 805-3 | 475 | 2500 | 0.35 | 0.50 | 1:1.7 | 11 | 3.3 V → 5 V | 6.7*10*4.2 | Details > | |
 |
KGT 805-4 | 475 | 2500 | 0.31 | 0.37 | 1:1.3 | 11 | 3.3 V → 3.3 V & 5 V → 5 V | 6.7*10*4.2 | Details > | |
 |
KGT 805 -5 | 475 | 2500 | 0.35 | 0.57 | 1:2 | 11 | 3.3 V → 5 V | 6.7*10*4.2 | Details > |
